HG5-Forage Grass Grow Container

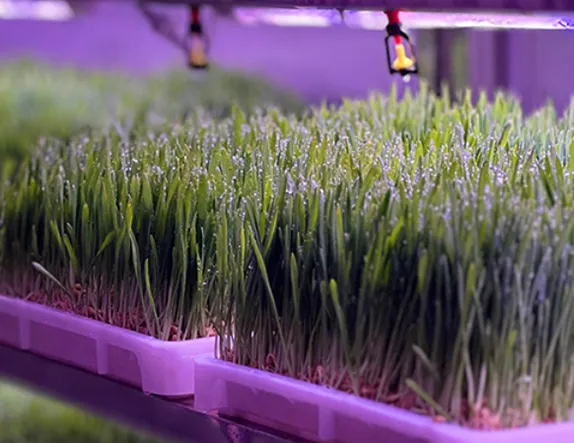

The Containerized Forage grass Greenhouse is an innovative and technologically advanced agricultural system that transforms standard shipping containers into controlled-environment farms for the year-round production of nutritious animal feed, most commonly barley grass.

This system represents a paradigm shift in agriculture, moving from traditional, land-intensive, and climate-dependent farming to a reliable, efficient, and sustainable method of feed production. Our hydroponic shipping container for sale leverages the principles of hydroponics and precision climate control to grow fodder in just 6-8 days, ready for livestock consumption.

Send Inquiry DOWNLOAD CATALOG

Specifications of HG5-Forage Grass Grow Container

Specification description		Quantity	Unit
Box body main part
Main structure	Standard 40-foot refrigerated thermal insulation container (high-density polyurethane thermal insulation layer with remarkable insulation effect, reducing later operational energy consumption)	1	item
Internal supporting facilities	T-shaped aluminum base plate (enhances the structural stability and can serve as a ground water recycling system)	1	item
	Laboratory-specific anti-slip floor mat
	Dry-wet dissociation partition + Windproof door curtain
	Interior decoration
implant system
Planting module	1) Number of equipment layers: 9 planting layers (single-layer planting height: 240 mm); frame material: 304 stainless steel; 2) Vertical rack cultivation method, with operation aisles that do not hinder normal activities such as planting and harvesting.	2	group
Planting tray	Specialized growth tray for forage grasses	360	set
Fill light	LED grow light strip for plant growth, 6W/meter	18	Branch
Irrigation system	Water storage tank + pump + main branch pipeline + terminal atomizing nozzle	1	set
Lighting lamp	LED lighting lamp	3	set
Auxiliary materials	Lines, pipes, and installation accessories	1	item
Monitoring system
Temperature and Humidity Sensor	[Product Brand] TECLION [Product Model] TKLN-WS-G/5 [DC power supply] 10-30VDC [Temperature measurement range] -40℃-80°C [Humidity measurement range] 0-100%RH [Long-term temperature stability] ≤0.1°C/year [Long-term humidity stability] ≤0.1%RH/year [Temperature resolution] 0.1°C [Humidity resolution] 0.1%RH [Output signal] RS485(Modbus Agreement) [Temperature accuracy] ±0.5°C(25°C) [Humidity Accuracy] +3%RH(5-95%RH，25°C)	1	set
Carbon dioxide sensor	[DC power supply] 12-24V DC [Average power consumption] 180mW [Measurement range] 0-5000 ppm [Resolution] 1 ppm [Measurement Accuracy] Conventional Soil 50ppm [Output signal] RS485 ( Modbus Agreement) [Scope of Work] -40°C-80°C 0-80%RH	1	set
Control system
Smart Management Control Platform	Control management system software, 1 set 1) Achieves management and detection display of various sensors such as temperature, humidity, CO2, etc. inside the plant factory. 2) Enables intelligent management of equipment including plant growth lights, humidification, fresh air systems, and constant temperature control.	1	set
Control cabinet	1) High-definition 7-inch Siemens brand LED screen + Siemens PLC main unit + remote control module + electronic components + cabinet body	1	set
Environmental control equipment
Constant temperature unit	Constant temperature unit (including 485 communication module, intelligent platform for unified smart control)	1	set
Fresh air system	Fresh air handling unit + supply and return air ducts + supply and return air vents + check valve	1	set
Circulation ventilation	Circulation fan (promotes internal air circulation and improves temperature and humidity uniformity in the space)	2	set
Sterilization system	Model： TKLN-007 10g/h	1	set
