HC8-RS485 multi-layer soil moisture detector

Name: HC8-RS485 multi-layer soil moisture detector
Brand: Hydroblue Technology Shanghai Co., Ltd.

The RS485 multi-layer soil moisture detector adopts the FDR principle to monitor soil moisture, temperature and electrical conductivity across multiple layers, with optional pH, NPK and other parameters; it uses RS485 and ModbusRTU for easy networking and secondary development. Featuring layered polling measurement, strong antiinterference, IP68 protection, 304 stainless steel corrosionresistant housing and wide voltage input, it can work outdoors for a long time with solar power, ideal for smart agriculture, watersaving irrigation and soil monitoring.

Send Inquiry

Specifications of RS485 multi-layer soil moisture detector

Specifications:Measuring Range: Moisture 0%-100% RH; Temperature -40℃~+80℃; Conductivity 0-20000μS/cm

Measuring Accuracy: Moisture ±2% within 0-50% RH, ±3% within 50-100% RH; Temperature ±0.5℃; Conductivity ±3% within 0-10000μS/cm

Resolution: Moisture 0.1%; Temperature 0.1℃; Conductivity 10μS/cm

Protection Level: IP68, fully submersible in water

Key Advantages of RS485 multi-layer soil moisture detector

The RS485 soil moisture monitor adopts master-slave polling measurement with strong anti-interference and stable data. It supports synchronous monitoring of multi-layer soil moisture, temperature and conductivity with high accuracy and fast response. Equipped with standard RS485/Modbus-RTU interface, it is easy for system integration and secondary development. With IP68 waterproof, 304 stainless steel corrosion-resistant material, wide voltage power supply and solar compatibility, it is suitable for long-term stable operation in outdoor environments.

Products

GET IN TOUCH WITH OUR HYDROPONICS EXPERTS TO RECEIVE A TIMELY REPLY WITHIN 24 HOURS.

Related lntelligent Agricultural Plant Protection System

HC7-Seedling Condition Monitoring Station

HC7 Seedling Monitoring Station: 4K PTZ camera, 350° monitoring, solar & 4G power, IP66 protection, remote seedling viewing, integrates environment data for smart farming.

HC4-Meteorological Station

HC4 Meteorological Station: High-precision multi-parameter monitoring, IP65 & wide temperature resistance, wireless cloud data, links irrigation & greenhouse systems for smart control.

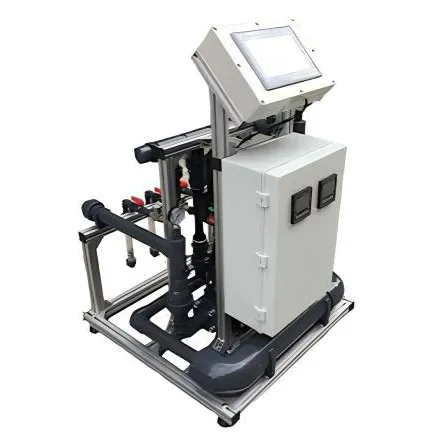

HC2-Water and Fertilizer Integrated Machine
